Ruida Controller RDM4024V-PCI Visual Laser Marking Control System

Description Of Ruida Controller RDM4024V-PCI

Visual positioning precision marking, suitable for 3C application industry. PCI interface motion controller. Adopts industrial camera and advanced image processing algorithm. Supports 4 axes + 2 galvanometer axes. With rich laser interface and external IO resources. Equipped with comprehensive optical tooling and light source system. Supports feature matching positioning function

Key Function

(1)Motion Controller with PCI Interface: Ensures high-speed data transfer and efficient control of marking operations.
(2)Industrial Cameras: Utilizes high-resolution cameras to capture detailed images for precise positioning.
(3)Advanced Image Processing Algorithms: Enhances the system's ability to recognize and process features for accurate alignment and marking.
(4)Axis Support: Supports 4 linear motion axes and 2 galvanometer axes, allowing for complex movements and versatile marking capabilities.
(5)Rich Laser Interface: Offers multiple interfaces for integrating various laser systems, facilitating diverse marking applications.
(6)External I/O Resources: Provides additional connectivity options for sensors and other peripherals, enhancing system flexibility.

Application Fields

• CO2 Laser:

1.Materials: Wood, leather, plastics, paper.

2.Applications:

(1)Wood Products: Engraving and cutting designs or logos on wood surfaces.
(2)Leather Goods: Marking patterns or branding on leather items.
(3)Plastic Marking: Suitable for various plastic types, ideal for signage and decorative items.
(4)Paper Products: Creating intricate designs or labels on paper materials.

• Fiber Laser:

1.Materials: Stainless steel, aluminum oxide, copper oxide, and other alloys.

2.Applications:

(1)Jewelry: Precision marking for serial numbers, logos, or decorative patterns on precious metals.
(2)Metal Components: Marking electronic parts, automotive components, and tools with high durability.
(3)Battery and Charger Marking: Ensuring traceability and compliance through clear markings.
(4)Switches and Connectors: Reliable marking on small electronic components for identification.

• UV Laser:

1.Materials: Plastic, PVC, electronic circuit boards, cables, chips, LCD screens, glass, food packaging.

2.Applications:

(1)Electronics Industry: Precision marking on circuit boards and components without damaging sensitive materials.
(2)Plastics and PVC: Ideal for high-resolution markings on plastic parts, maintaining their integrity.
(3)LCD Screens: Non-intrusive marking that preserves screen quality while providing identification.
(4)Glass Marking: Creating detailed designs or labels on glass products.
(5)Food Packaging: Safe and precise marking for traceability and compliance in the food industry.

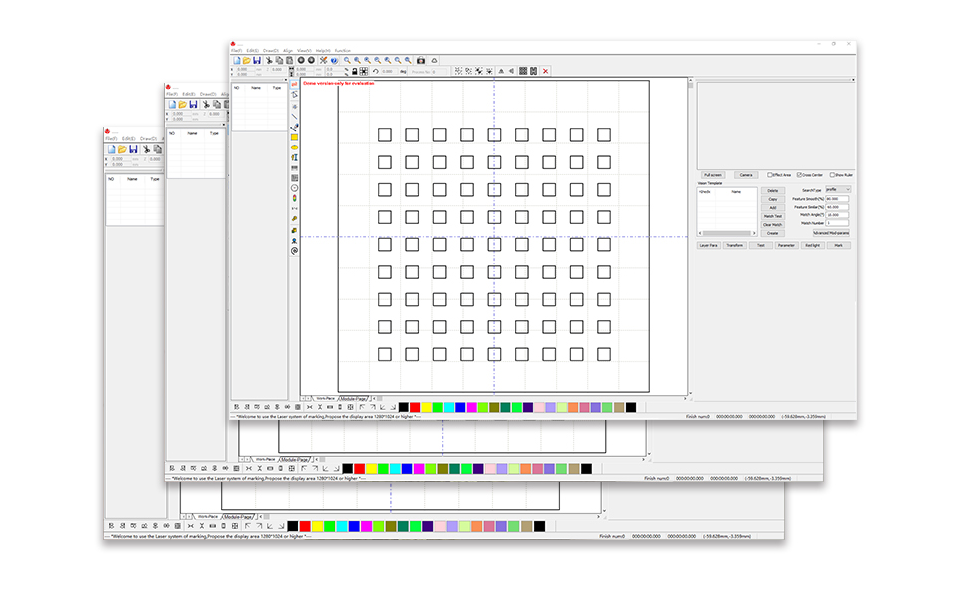

Software RDMarkVision(Free)

Support PLT, DXF, DSB, DST, SVG, BMP, JPG and other file formats import, display and edit functions, support image file import and processing. Support simplified Chinese, traditional Chinese, English and other languages

Product Certification

All products passed CE, RoHS and FCC certification, in line with safety production standards.
